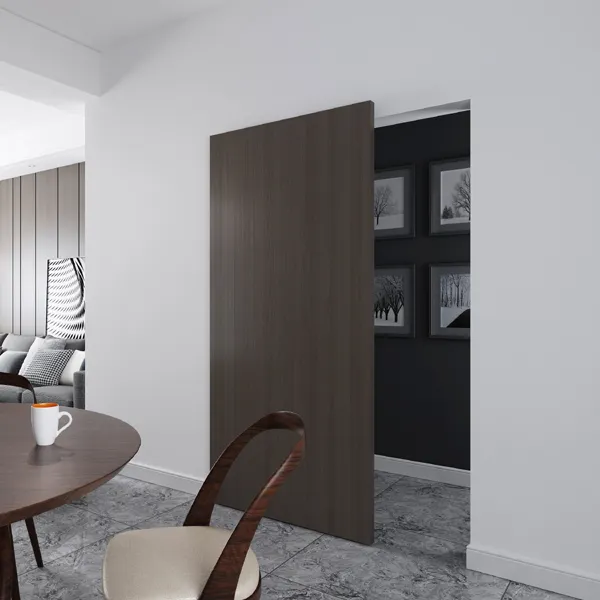

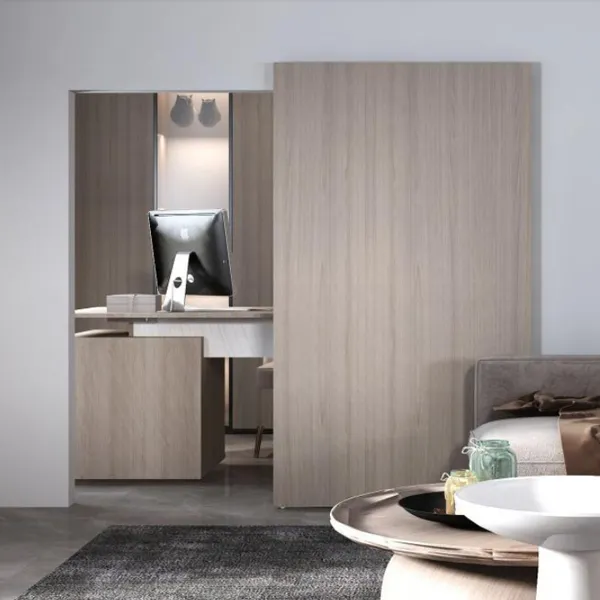

Concealed Sliding Door Hardware

Model No.: SPK-512B

Material:	Aluminium Alloy
Finish:	Black, white, ORB, satin nickel and gold
Track length	39″, 48″, or customized
Max loading:	133lbs (60KG)
door thickness	1-1/4″ or 1-3/4″ (32m-45mm)
Option:	Door puls and knobs, barn door lock
Application:	Widely used on residential

Product advantages:

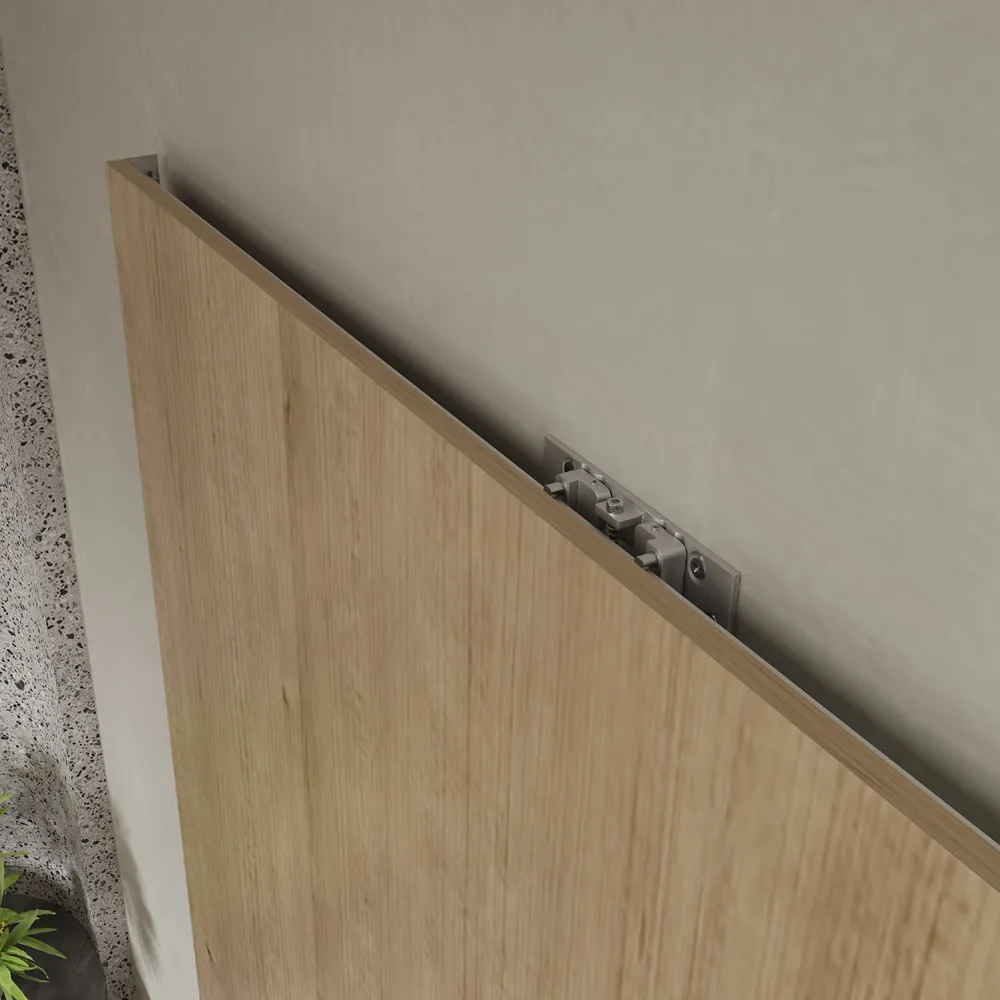

1. Novel and unique appearance, fully hidden structure;
2. Upper load-bearing structure, no floor rail;
3. Smooth sliding, low noise;

Notes:

1. Wooden door thickness 32-45mmmm
2. Wooden door needs to be grooved at the top and bottom.

Net weight: 2.0KGS   Gross weight: 2.7KGS

Packing size: 1040*125*65mm (guide rail length 1m)
Pallet size: 1120*1120*1130mm (112 sets/pallet)
20GP: 2240 sets        40GP: 4480 sets           40HQ：4800 sets



Downlod Installation Manual Below:

Installation manual of hidden sliding door system SPK-512

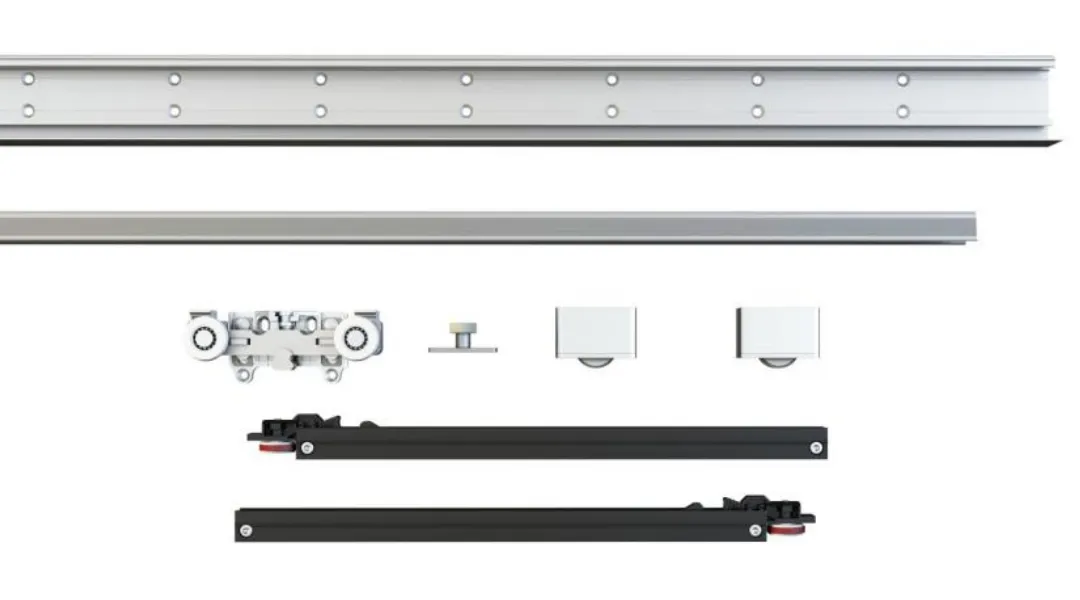

Components List

Roller
