Model No.: SPK-9404
| Product type | Pocket door lock |
| Material | Metal |
| Finish | Satin nickel/black |
| Lock typle | Unkeyed |
| warranty | 3-Year |
| Size | 2-1/2″ [63.5mm] x 2-3/4″ [69mm] x 1 -3/8″ [35mm] |
| Door Thickness | 1-3/8″ [35mm] – 1-3/4″ [45mm] |
Features
- Designed for use as lock/pull on pocket doors where privacy is desired.
- Features reversible design for left or right handed doors from 1-3/8 in to 1-4/7 in thickness.
- Manufactured from metal and galvanized steel for durability and corrosion resistance.
- Mounting hardware included for easy installation.
- 50000 cycles test passed.
- Black or satin nickel finishes are available to suit your interior space design.

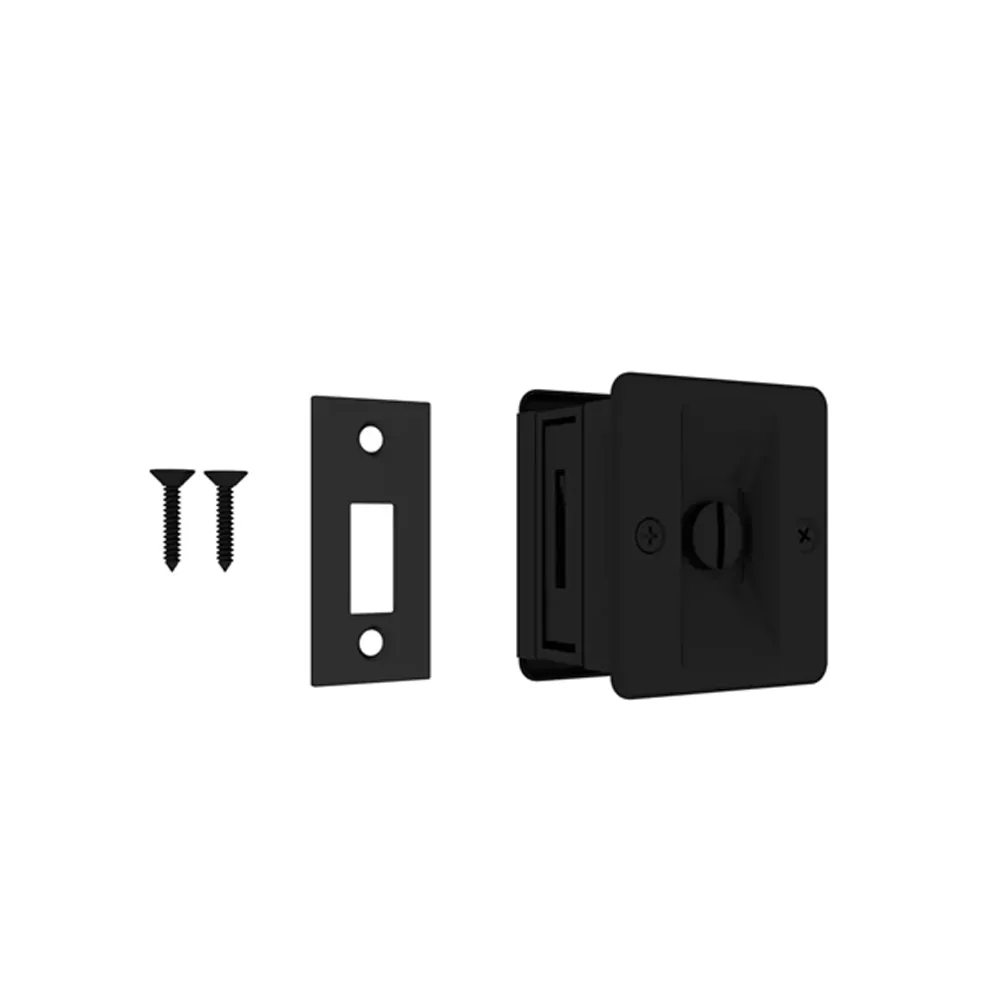

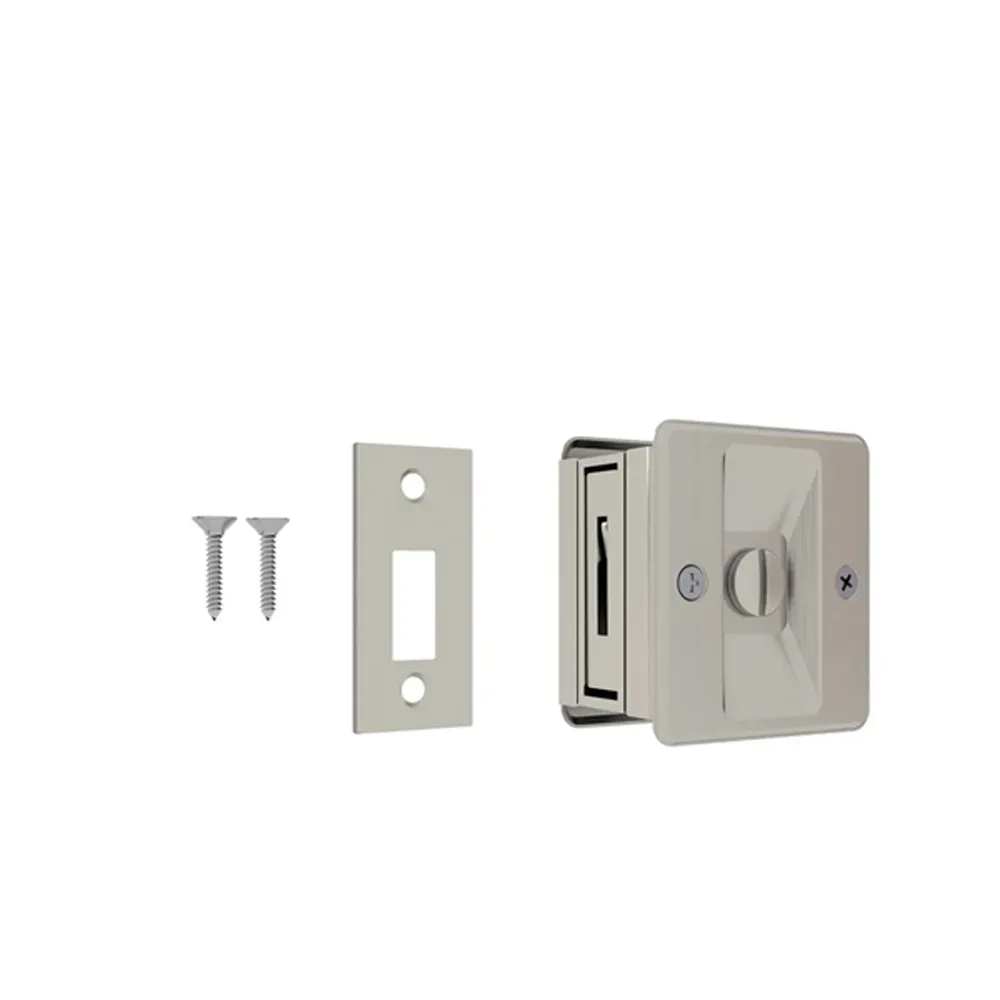

- Complete set includes:1 pocket door lock, screws and installation instructions.

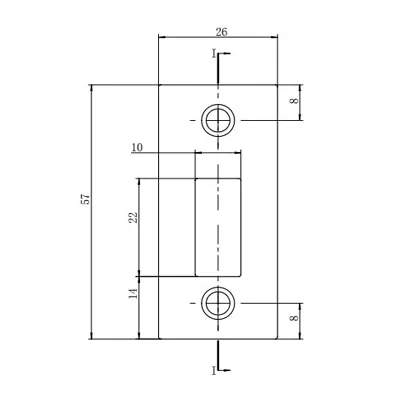

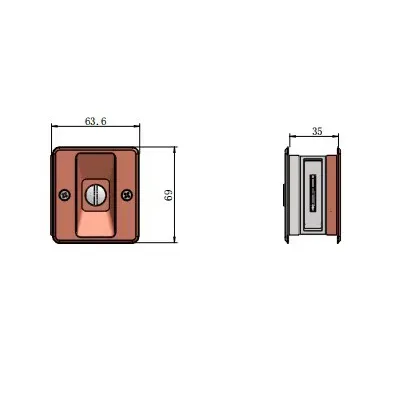

Dimension drawing
Pocket Door Lock FAQS
1. What is the cut-out dimensions?
The height cut out is 2 1/4″ and the depth is 1 3/4″.
2. Does the satin nickel pocket door lock set come with a strike plate?
Yes, it comes with the strike plate.
3. Can this be unlocked from the outside?
Yes, there is a slot on the outside handle where a coin or slotted screw driver can be turned to unlock it.
How can we improve our product information? Feel free to let us know, thanks.
