Specification sheet of SPK-301 from spark hardware
Model No.: SPK-301
| Material: | High quality steel |
| Finish: | Black, white, ORB, satin nickel and gold |
| Track length | 48”, 60”, 72”, 78”, 96”, 10FT and 13FT |
| Max loading: | 220lbs (100KG) |
| door thickness | 1-3/8″ or 1-3/4″ (35m-45mm) |
| Installation: | Wall mount and ceiling mount |
| Option: | Barn door latches, barn door pulls and knobs, soft-close mechanism |
| Application: | Widely used on residential. |
Components of sliding barn door kit

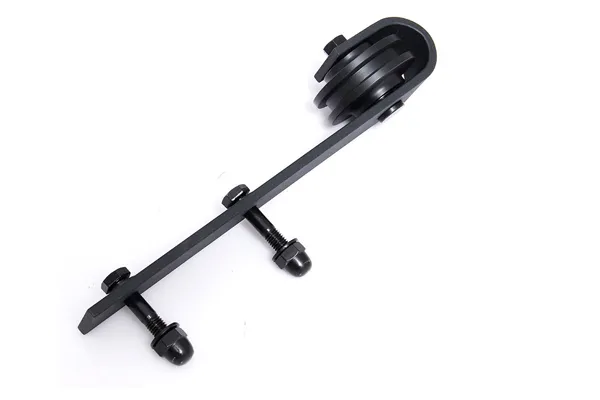

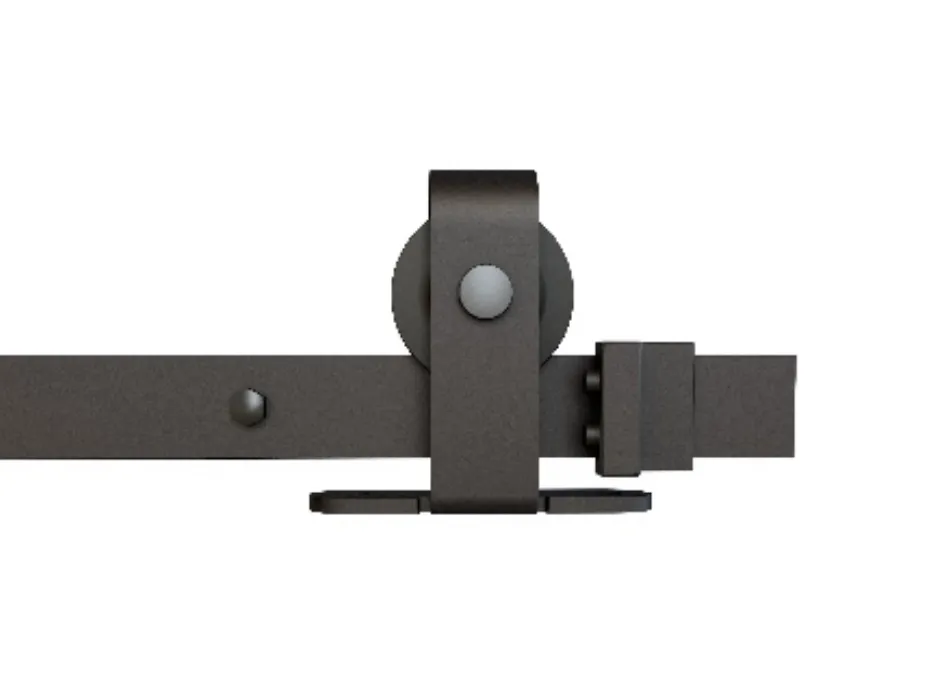

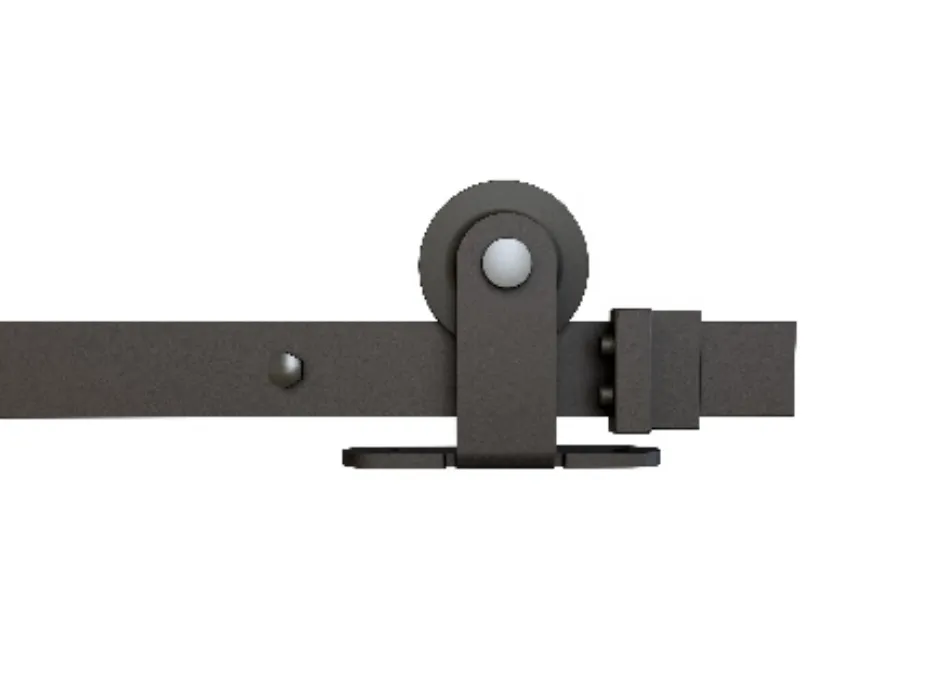

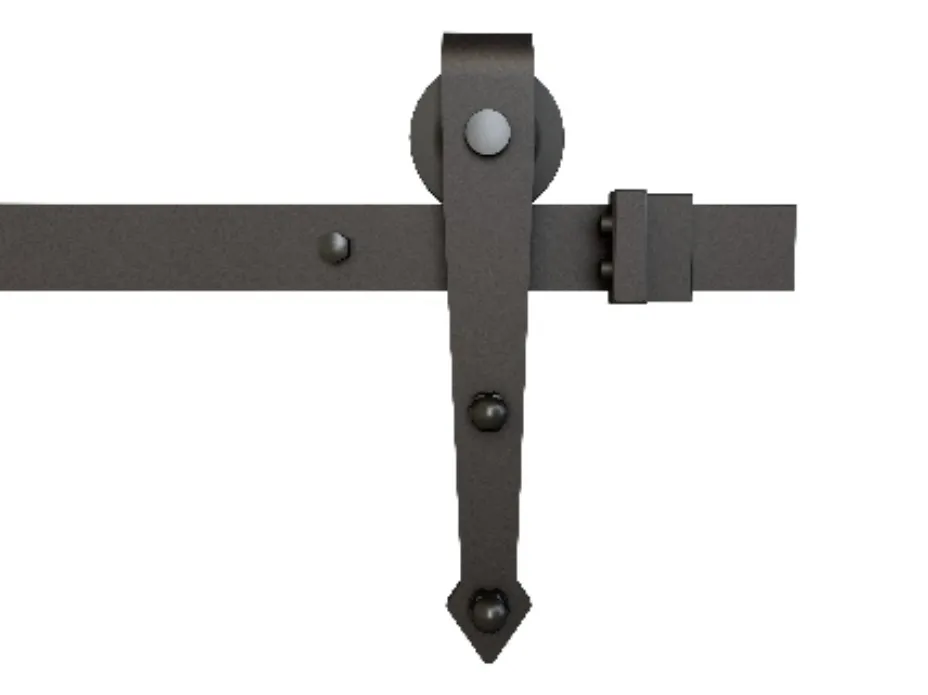

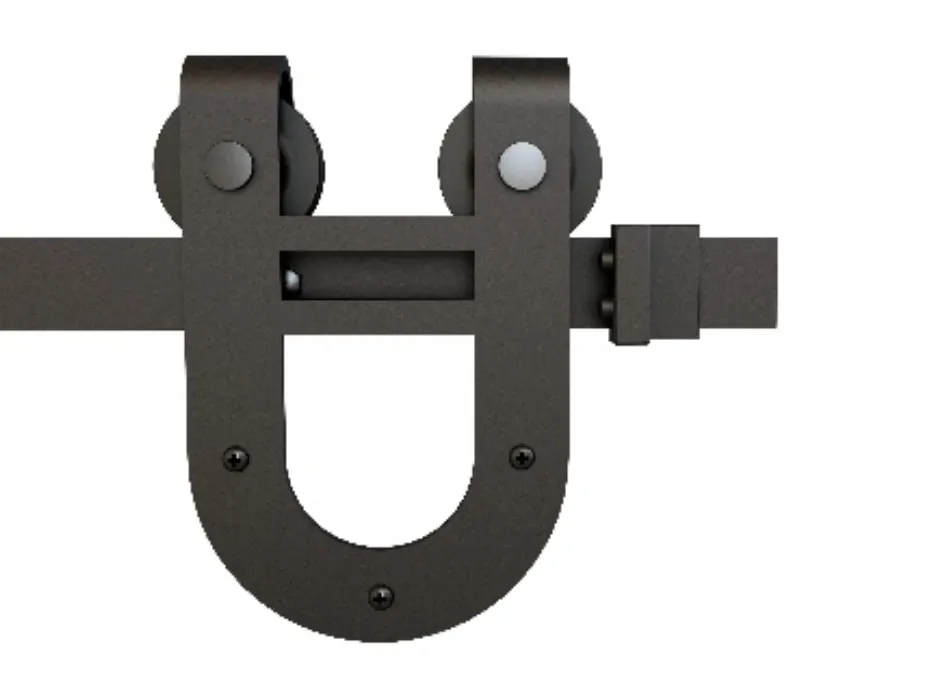

Hanger

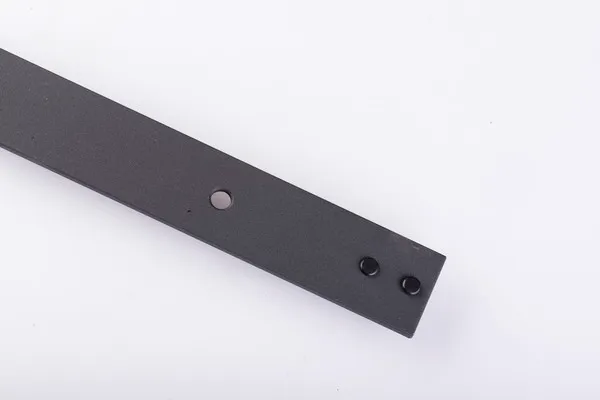

Track

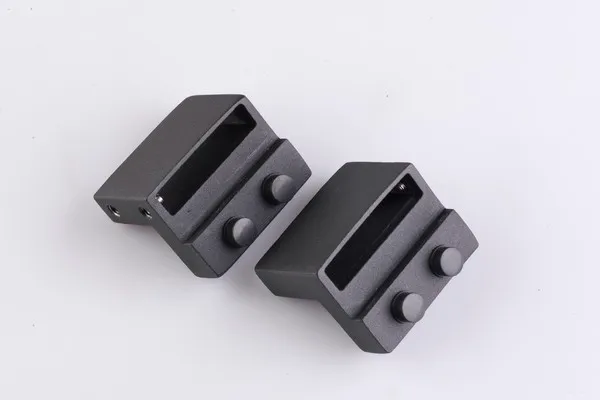

Door Stop

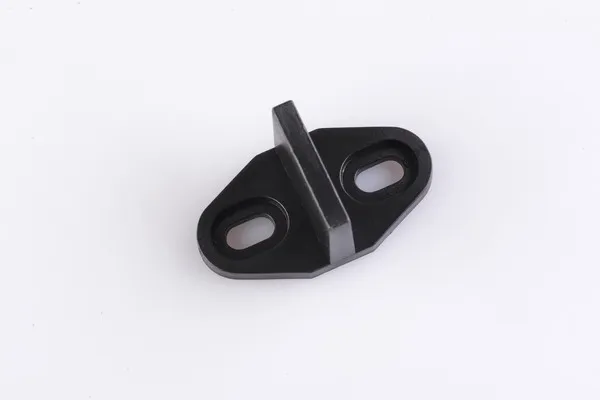

Floor Guide
Features
- Steel track：Heavy track can carry doors weighting up to 220lbs (100KGS) , Track can be cut down to accommodate narrower panel.
- Sliding barn door kit can accomodate door thickness from 1-3/8″ (35mm) to 1-3/4″ (45mm).
- Top Hung hardware, no bottom rail.
- Surface mount, no mortising required.
- Easy to install.
advantage
- Pass salt spray test of 48 hours.
- Pass thickness testing of powder coating.
- Meets performance requirements of ANSI/BHMA 156.14 Grade 1 forsliding doors by exceeding 100,000 cycles in operation.
- Nylon coated wheel for smooth operation
- Five year warranty
- Grade 8.8 set screws can guarantee the product sa
- Our floor guide and safety-pins are made from freshmaterial, to increase the service life.
- Each kit is more heavy than others, as we supply mid and high end products always.
- Our products are with perfect finish, no scratchand no wear.
FAQs
1. Can I purchase custom track?
Yes, Sure. Our standard track length is 48”, 60”, 72”, 78”,96”, 10FT, 12FT, and 13FT. You can also custom the track length.
2. Can you please help to design the label of packing and print bar code?
Yes, we can do it for you.
3. Are you able to develop my own design of sliding door fittings?
No problem. We are good at developing of new product.
4. How long will the new molding take?
You can get the first sample within roughly 35 days.
5. What is the delivery time of regular sample?
Normally 5-7 days.
6. Lead time of regular products?
Generally, for mass production order, 25-30 days upon confirmation of down payment.
